Main Room (G14) Lighting
There are 4 DALI LED panels installed in 2025.
A relay is connected to one of the lights, to detect when the light switch is turned on.

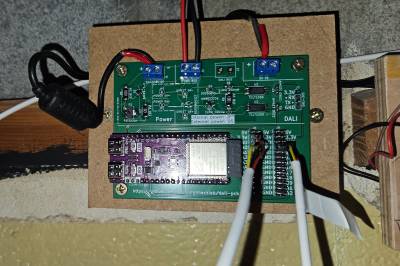

Controller and PCB:
- Light switch connections:
- Black: GND
- Yellow: 11
- Dimmer switch connections:
- Red: 3.3V
- Black: GND
- Yellow (¬A): A0
- Blue (¬B): A1
DALI Addresses
| Sink | Window |
|---|---|
| 21 | 18 |
| 22 | 23 |
| Door | Wall |
| Wall | Door |
|---|---|
| 23 | 22 |
| 18 | 21 |
| Window | Sink |
DALI Light Level Presets
| Name | Level |
|---|---|
| Dim | 1 |
| Comfort | 180 |
| Bright | 220 |
Log
2025-08-10:
- ESP32-S3 “dali-g14-FF3FB3” running https://github.com/edinburghhacklab/mqtt-dali-controller installed, with https://github.com/edinburghhacklab/dali-pcb and a rotary encoder dimmer switch (Simon)
