TIG Welder
We have a WSME200 AC/DC TIG welder on loan from mikewalters.
Status
Working (as of 2018-01-22).
This tool requires an induction before use. Sessions are being advertised regularly on the mailing list. Contact mikewalters if one hasn't happened in a while.
Risk assessment
Accessories
| Photo | Name | Notes | Location |
|---|---|---|---|
 | Torch | Welding torch & cable. Includes torch-switch for when not using foot pedal | Attached to the welder |
 | Ground clamp | Ground return clamp & cable. Usually left clamped to the welding table | Attached to the welder |
 | Foot pedal | Used for on/off and variable current control while welding. It has a dial on it to set max current (this overrides the machine front panel!) | Attached to welder |
 | Torch accessories bag | Contains spare collets, cups, back-caps and tungstens | On top of the welder |
Log
2017-11-26:
- Test log please ignore.
2025-06-09:

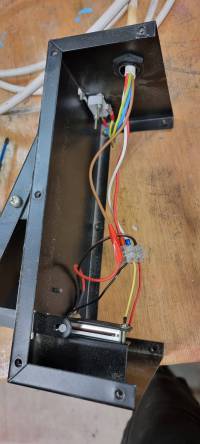

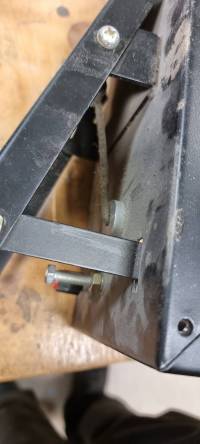

- Fixed the foot pedal. The new resistor was a slightly different setup, but I added a large ali washer, a plastic nut and bolt, and wired it back together. (Nigel)
